XT connector

High-power connector

XT series connector ※The booth does not list all series of power system connectors. Please consult our company for details. We can customize products according to customer needs.

Product Details

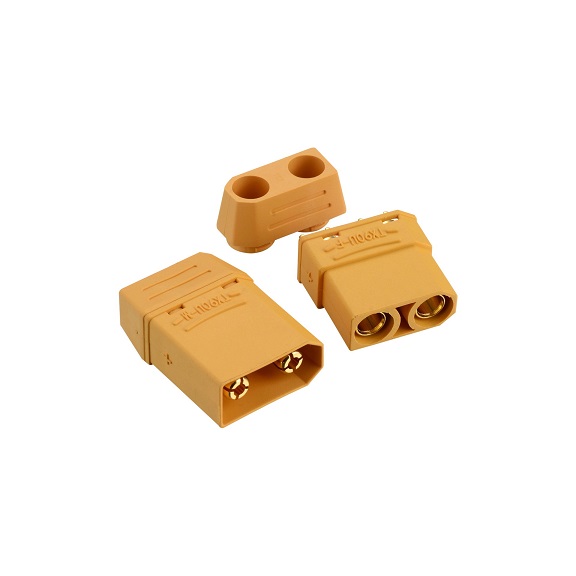

Product model: XT90U

Recommended applications: Electric vehicles/ESCs/controllers

Product color: yellow

Metal material: gold-plated copper

Instantaneous current: 90A

Recommended wire gauge: 10AWG

Rated current: 45A

Insulation material: PA

Contact resistance: 0.4mΩ

Working temperature: -20℃ to 120℃

Withstand voltage: DC 500V

Recommended times of use: 1000times

Flame retardant grade: UL94-V0
