EC connector

High-power connector

EC series connector ※The booth does not list all series of power system connectors. Please consult our company for details. We can customize products according to customer needs.

Product Details

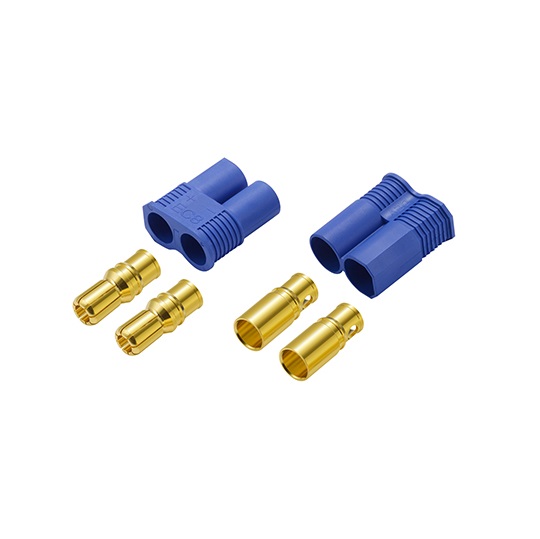

Product model: EC8

Recommended Applications: Lithium Batteries/Controllers

Product color: blue

Metal material: gold-plated copper

Instantaneous current: 160A

Recommended wire gauge: 6AWG

Rated current: 80A

Insulation material: PA

Contact resistance: 0.5mΩ

Working temperature: -20℃ to 120℃

Withstand voltage: DC 500V

Recommended times of use: 1000times

Flame retardant grade: UL94-V2
